Toyota Full Hydraulic Steering Kit 10 Inch Ram For 89-95 Pickup and 4Runner Trail Gear

Toyota Full Hydraulic Steering Kit Trail-Gear is proud to bring you the first complete Toyota Full Hydraulic Steering Kit. This kit comes with everything needed to build a fully hydraulic steering system. All mounting brackets are included and have been specifically designed for Toyota applications and ease of installation.

This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. This kit is ideal for use with links and also works with most leaf spring applications.

Our kit is the most user friendly kit on the market, we thought of everything so you don't have to. If you are using our Rock Assault 9 Front Axle Housing, you will need to use a 10.0 Inch ram for your steering setup. Works with most leaf spring applications. Never use ATF fluid, or a semi-synthetic blend. This will void the warranty. Ok to use standard power steering fluid or a full synthetic.

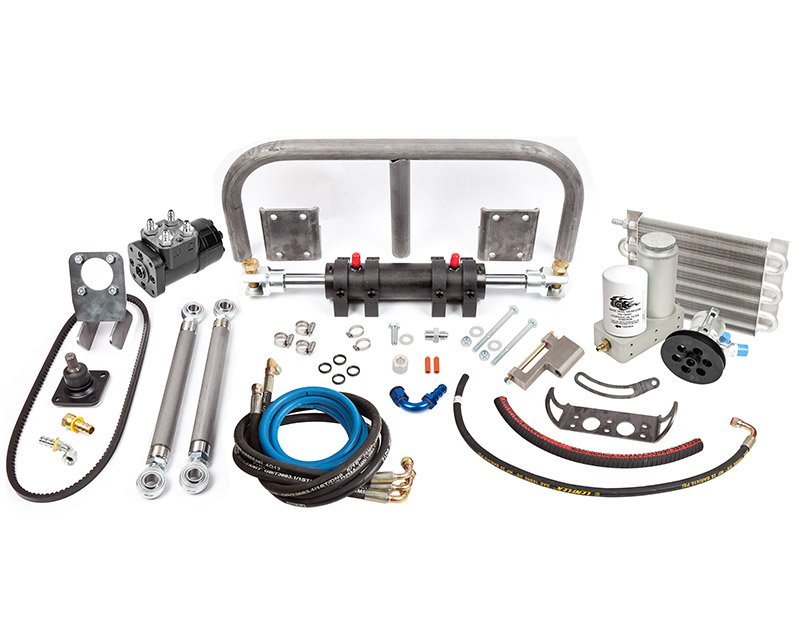

Kit Includes:

• 6.0 Inch, 8.0 Inch, or 10.0 Inch Double Ended Ram and Clevis Kit
• 100.0 ml, 125.0 ml, or 160.0 ml Orbital
• Full Hydraulic Steering Pump with Pulley
• Tie Rod Kit
• Double Ended Ram Mounting Kit
• Steering Column
• Orbital Mounting Kit
• Reservoir with Filter
• Reservoir Bracket
• Cooler
• Power steering belt
• Complete hose kit
• All necessary hardware

Specs:

• Warranty: 12 Month Limited Warranty
• Sold As: Kit
• Material: Steel
• Finish: Bare
• Color: Grey
• Size: 10.0 Inch
• Engine: V6
• Container Size: 3.0L
• Location: Front
• Fits: 1989-1995 Toyota Pickup, 1989-1995 Toyota 4Runner
