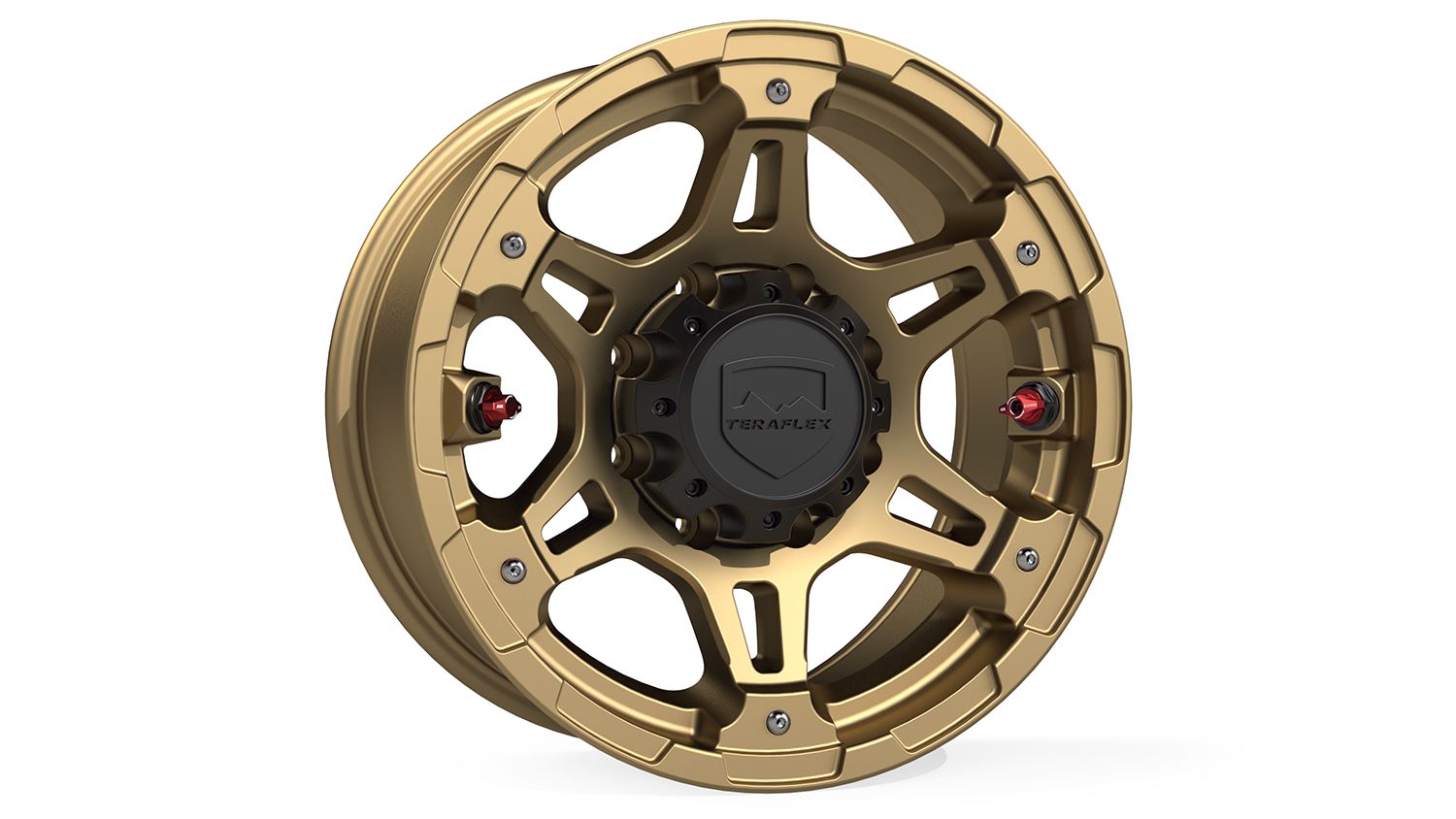

Nomad Split Spoke Off-Road Wheel 8X6.5 Inch -12mm - Bronze TeraFlex

Round out your build with a set of these tough and durable TeraFlex Nomad Split Spoke Off-Road Wheels. These cast alloy wheels feature a reinterpretation of the classic split spoke, six-hole design. Engineered with a form follows function philosophy resulting in a technical look.

With its Modular Plug System, TeraFlex Off-Road Wheels are the only wheels compatible with our proprietary Air Deflator Valve that allows you to quickly air down your tires to a preset pressure. An adjustment screw allows you to set the preset pressure at any psi as low as 10 psi.
Features:

• Nomad Split Spoke Off-Road Wheel 8X6.5 Inch -12mm - Bronze
• Cast from heat treated A356-T6 aluminum
• Strong enough to handle 40 inch tires
• Locking beads seat knurling allows for safely running lower air pressure
• Lack of water troughs prevents water pooling
• Dual-stage clear powder coat w/ UV inhibitors
• Easy to clean finish
• Modular Plug System accepts Air Deflator Valve, Schrader Valve Stem Housing and Cap, or Air Deflator Plug
• Symmetrical valve holes for balance
• Fully encapsulated Schrader Valve to keep out contaminants

Air Deflator Valve:

• Air Deflator Valve allows you to quickly air down your tires to a preset pressure
• Adjustment screw sets spring preload
• Allows pressure to be preset to as low as 10 psi
• Releases up to 40x more air than Schrader valve for quick air down
• O-ring seal ensures air blows contaminates away from air release orifices
• Viton O-ring can be changed w/out disassembly
• O-ring seals pressures up to 3,500 psi
• Black and red anodized finish

Vehicle(s):

• JL Wrangler (2-door) w/ Tera60 and CRD60 Axles
• JL Wrangler Unlimited (4-door) w/ Tera60 and CRD60 Axles
• JT Gladiator (pickup) w/ Tera60 and CRD60 Axles
• JK Wrangler (2-door) w/ Tera60 and CRD60 Axles
• JK Wrangler Unlimited (4-door) w/ Tera60 and CRD60 Axles
• May fit other vehicles w/ 8x6.5 inch lug pattern

Specs:

• Diameter x Width: 17 inch x 8.5 inch
• Bolt Pattern: 8X6.5 inch
• Offset: -12mm
• Hub Bore: 125.1mm
• Back Spacing: 4.25 inch
• Finish: Bronze

Includes:

• Nomad Split Spoke Off-Road Wheel
• Air Deflator Valve (part number 1056000)
• Schrader Valve Stem Housing and Cap (part number 1056001)
