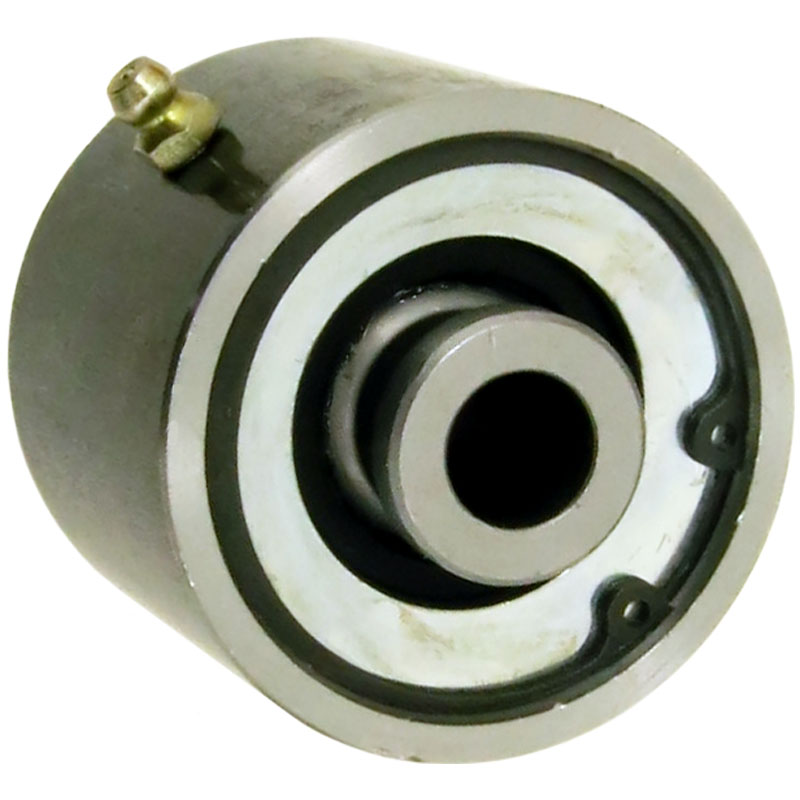

Johnny Joint Rod End 2 1/2 Inch Weld-On 2.368 Inch X 0.625 Inch Ball Externally Greased Each RockJock 4x4

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

The outer shell is weldable .180 Inch wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 Inch o.d. and features a 2.465 Inch mounting width and a .625 Inch thru bolt hole. This ball center does Not have a flange on one side for use in front trac bar applications.

Details:

• Johnny Joint Rod End
• 2 1/2 Inch
• Weld-On
• 2.368 Inch X 0.625 Inch Ball
• Externally Greased
• Each
