Johnny Joint Rod End 2 1/2 Inch Narrow Forged Long Shank 1 1/4 Inch-12 RH Threads 2.365 Inch x .562 Inch Ball RockJock 4X4

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

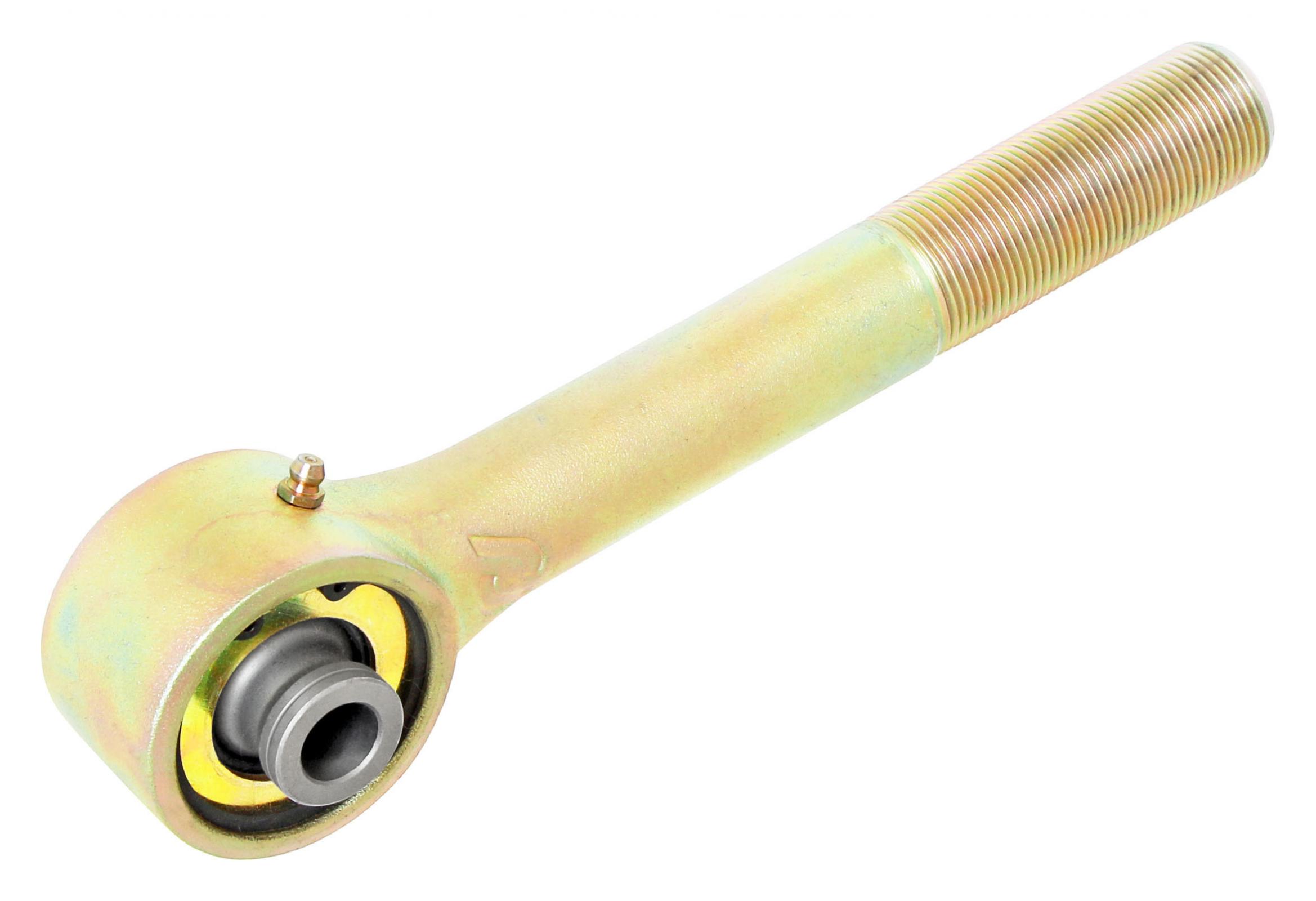

This specific joint is a 2 1/2 inch diameter, narrow body and features a 9 1/2 inch long shank, from CL of joint to end of tip of threads), 3 1/2 inch of 1 1/4 inch-12 RH threads and a 2.365 inch wide x .562 inch thru-hole center pivot ball.

Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut.

Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.

Kit Fits:

• Universal Application
• Upgraded replacement joint for many common long arm kits on the market

Kit Includes:

• (1) Forged Johnny Joint Assembly

Rod End Specs:

• Forged 4140 chromoly construction
• 2 1/2 in. O.D., narrow body Johnny Joint at one end
• Measures 9 1/2 in. from CL of the joint to the end of the tip of the threads
• 3 1/2 in. of 1 1/4 in.-12 RH threads
• Features our CE-91102JK center pivot ball (2.365 in. x .562 in.)

Rod End Features:

• The long shank design pushes the jam nut outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut.
• The smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots.

Notes:

• We recommend the use of our RJ-533000-1 Rubber Washers on each side of this Johnny Joint to encourage the joint to re-center itself after articulating
• See CE-9114JN for a Jam Nut to fit this joint
• If a Weld-In Bung and Jam Nut are required, see CE-9114B
• Applicable Johnny Joint Tool for this joint: CE-9110T
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G

Parts List:

• Johnny Joint Forging: RJ-335400-2
• Johnny Joint Rebuild Kit: CE-9110NRK
• Johnny Joint Center Pivot Ball: CE-91102JK
• Zerk Fitting: CE-1103K21
