Angled Frame Panhard Trail Gear

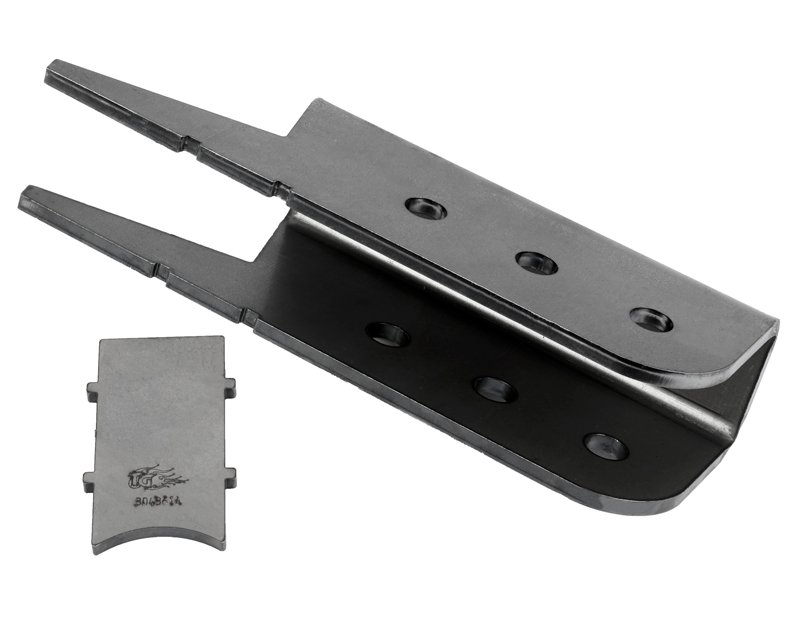

Angled Frame Panhards These offset and adjustable panhard brackets are laser cut and formed in our own facility. They are designed to have a 15.0 degree angle from vertical. The three mounting holes are 0.5625 Inch in diameter and spaced 1.75 Inch apart, giving a total of 3.5 Inch of adjustment.

These brackets are shipped unfinished and unwelded giving you the freedom to trim or adjust the bracket as desired. This bracket was designed to work with 0.75 Inch rod ends using misalignment spacers with an inside width of 1.75 Inch and a 0.5625 Inch through-hole. Includes a weld-on reinforcement plate to strengthen bracket. Not designed for use with High Steer.
Specs:

• Warranty: 12 Month Limited Warranty
• Sold As: Each
• Material: Steel
• Finish: Bare
• Color: Grey
• Location: Inside
• Fits: Universal
