Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects. Factory Toyota axle housings are available in a narrow range of widths which may not fit your crawler well. Trail-Gear Fabricated Axle Housings allow you to use Toyota axles in nearly any width from the narrowest of moon buggies to full-size trucks.

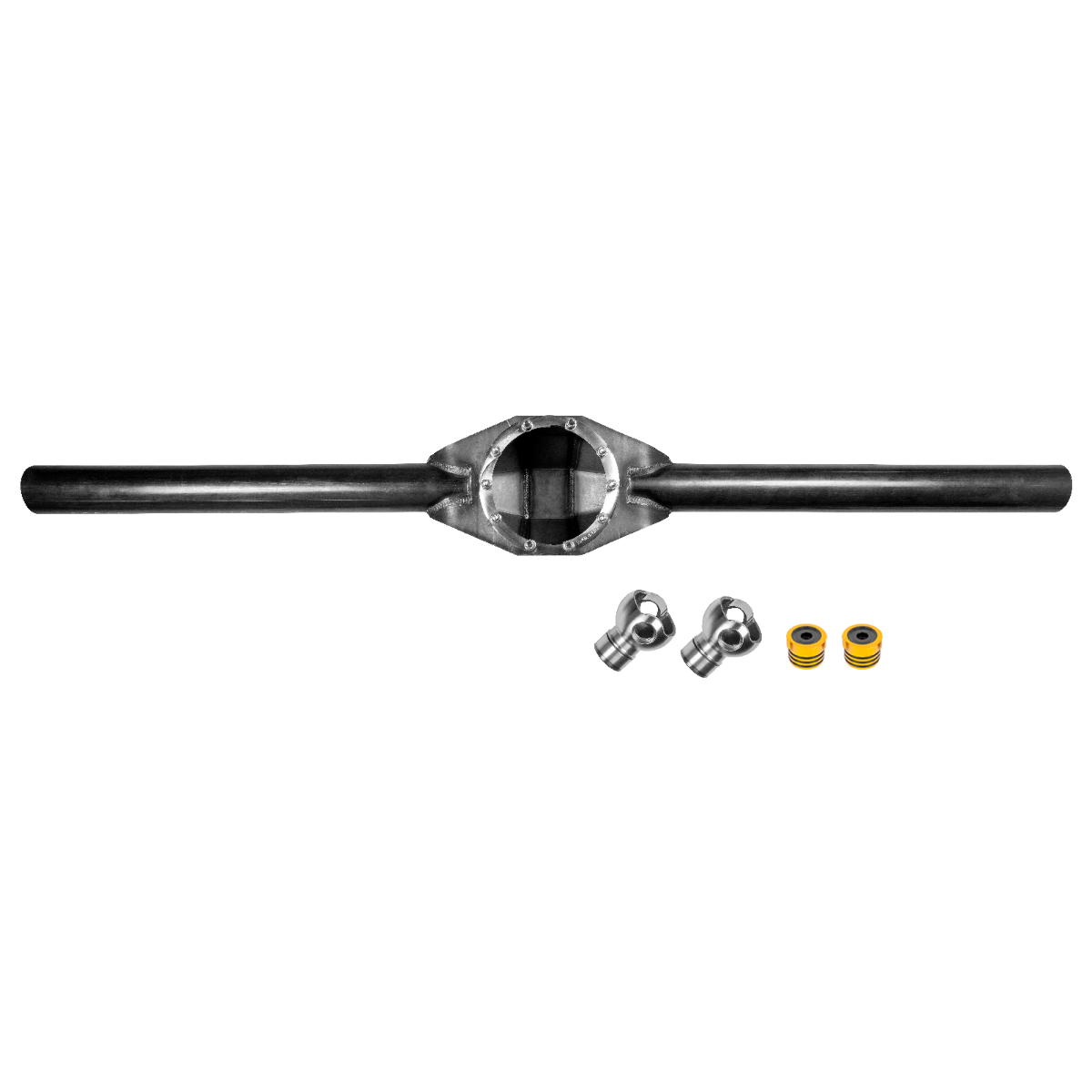

Trail-Gear's Fabricated Axle Housings Builder Kits are available for Toyota 8 inch, 8 inch E-locker, or 8.4 inch differentials and feature all of the same specifications as our Rock Assault 9 axles. Fabricated Axle Housing Builder Kits include a 75-inch wide Trail-Gear axle housing and two Knuckle balls. You can cut the axle length to size and weld your knuckle balls where you need them.
The knuckle balls included are brand new, so no need to source 30 year old knuckle balls. Our knuckle balls are forged from 1035 steel, making them much stronger than stock, eliminating closed or bent knuckle balls.
We started with a 1/4 inch thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2 inch thick faceplate for anchoring the 3.5 inch OD DOM axle tubes.
The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.
We offer two different axle tube wall thickness options. The 1/4-inch wall tube version saves weight while the 3/8-inch wall tube version provides even greater durability. We also include seal housing kits for both sides.
Specs:
- 8 Inch Fabricated Front Axle Builder Kit Knuckle Ball 3.5 Inch Diameter 3/8 Inch Wall E-Locker with Inspection Hole
- 1/4 inch CNC formed center section
- 1/2 inch Formed faceplate
- DOM axle tube
- 3-point attach system
- Faceplate is machined after welding to ensure that the differential mounts flush
- Includes 2 seal housing kits
- Includes brand new knuckle balls
- Cut to length housing is 75 inch wide
- Ships bare
- Oil Capacity Varies depending on axle width. We recommend having 1 Gallon of oil on hand and filling to the top of the fill plug hole
- Size: 8.0 Inch
- Wall Size: 3/8 Inch
- Locker: E-Locker
- Sold As: Kit
